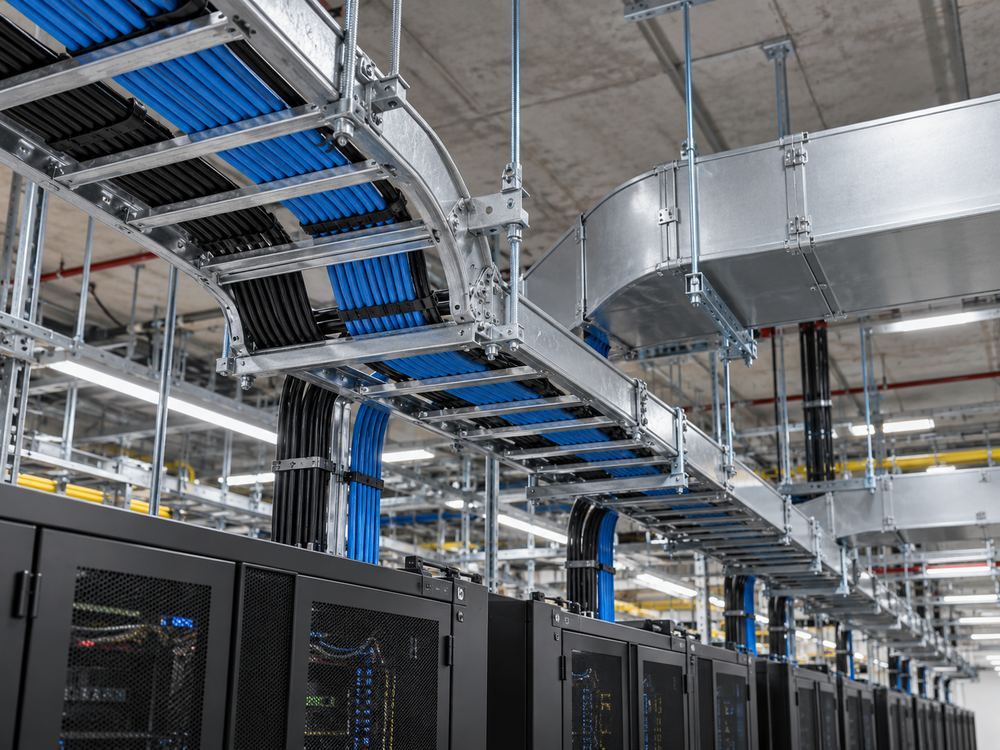

Cable Ladders and Trays for Cable Routing in Data Centers

In a data center, which carries a large volume of power, communications, and control cabling, proper organization of cable pathways is essential for preventing electromagnetic interference, improving airflow, and simplifying future maintenance work. The solutions Synergy Systems supplies are designed to support both the current cable load and future additions.

The choice between a cable ladder and an enclosed tray is made according to the type of cabling, the separation requirements between power and communications circuits, and the environmental conditions at the facility.

Separating Power and Communications Cables in Cable Pathways

Proper pathway design includes physical separation between power cables and communications and data cables, in accordance with standards and the electromagnetic compatibility requirements of IT equipment.

הפרדה בין חשמל ונתונים
Separation of Power and Data

Separate pathways reduce interference and maintain operational order.

גישה נוחה לתחזוקה
Easy Maintenance Access

Orderly routing makes it possible to service cabling without dismantling adjacent infrastructure.

תכנון להרחבה עתידית
Designed for Future Expansion

Additional capacity makes it possible to add cables as the facility grows.

שמירה על זרימת אוויר
Preserving Airflow

Proper design minimizes blockages in the server room's cooling pathways.

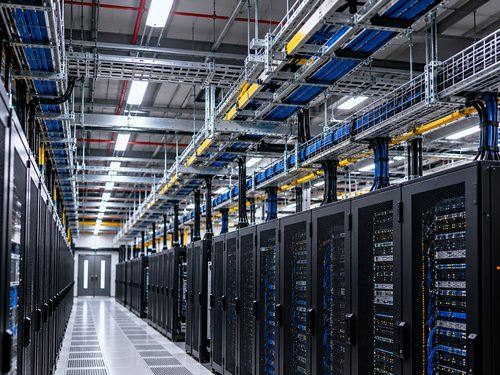

כבילה עילית מעל ארונות
Overhead Cabling Above Racks

Orderly routing of power, communications, and control cabling along server rows and service aisles.

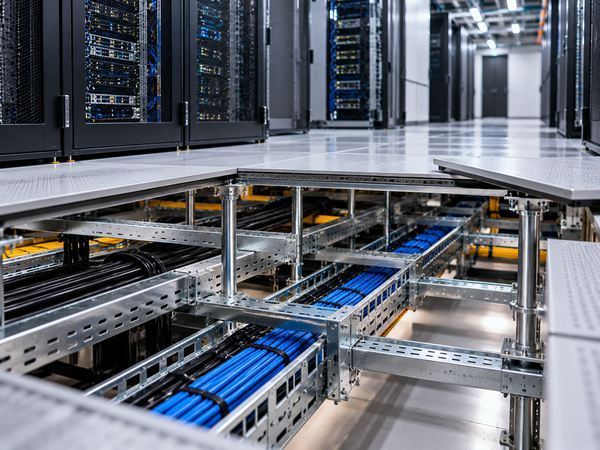

תת-רצפה מוגבהת
Raised Floor

Pathways that allow maintenance access without blocking the airflow beneath the floor.

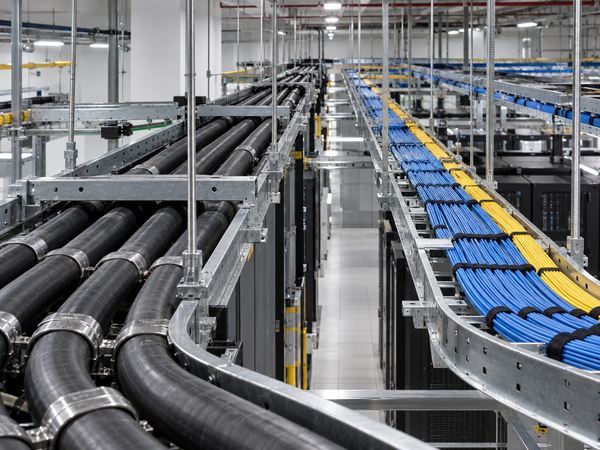

הפרדה בין הספק לנתונים
Power-to-Data Separation

Creating separate routes to reduce interference and maintain operational order.

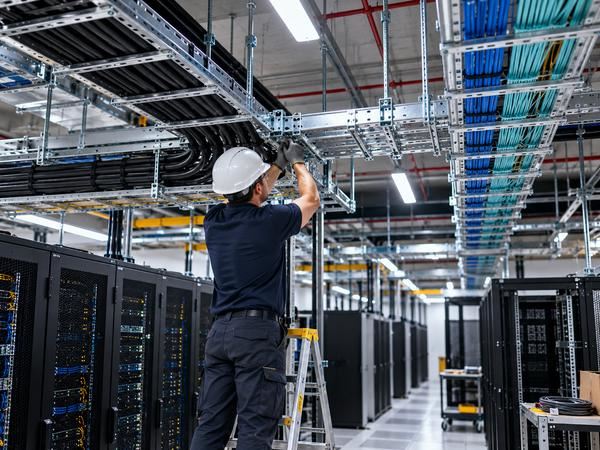

הרחבת חדר שרתים קיים
Expanding an Existing Server Room

Adding cabling pathways and future capacity without dismantling the live infrastructure.
