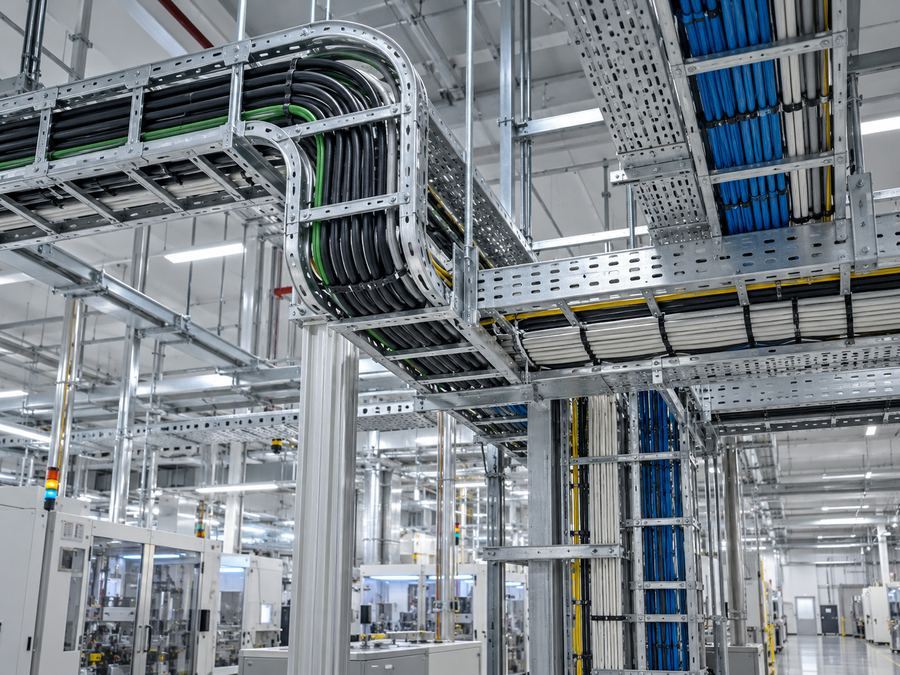

Cable Ladders and Trays for Electronics and Semiconductor Plants

In electronics plants, where a large volume of power, control, and communications cabling runs close to sensitive equipment, proper organization of cable pathways is essential for preventing electromagnetic interference and maintaining signal quality among the control system components. The solutions Synergy Systems designs also allow easy access for maintenance and future expansion.

The choice among ladder and tray types is made according to the sensitivity of the equipment in the environment and the separation requirements between power circuits and control and communications cables.

Separating Power, Control, and Communications Cables in a Sensitive Environment

Proper pathway design includes physical separation between power cables and control and communications cables, which is critical in a production environment with measurement and test equipment sensitive to interference.

הפרדה בין הספק לבקרה
Separation of Power and Control

Separate pathways help reduce interference between cabling types.

שמירה על איכות אות
Preserving Signal Quality

Suited to environments with sensitive measurement, test, and communications equipment.

גישה נוחה לתחזוקה
Easy Maintenance Access

Orderly design allows servicing and expansion without disrupting the production line.

התאמה לחדרים נקיים
Suited to Cleanrooms

Routing solutions that account for the controlled environment and accessibility.

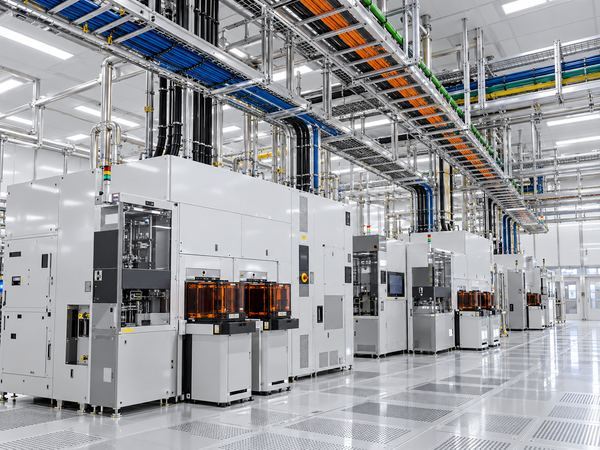

חדרים נקיים
Cleanrooms

Organized pathways for power, control, and communications, taking cleanliness and access requirements into account.

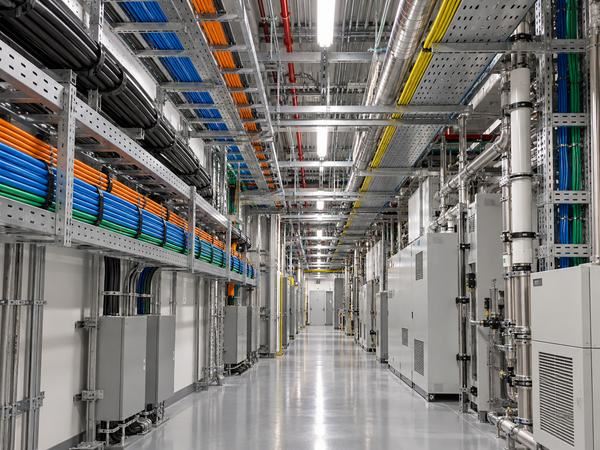

קווי הרכבה וייצור
Assembly and Production Lines

Routing cabling above the machines and along the stations without obstructing the work space.

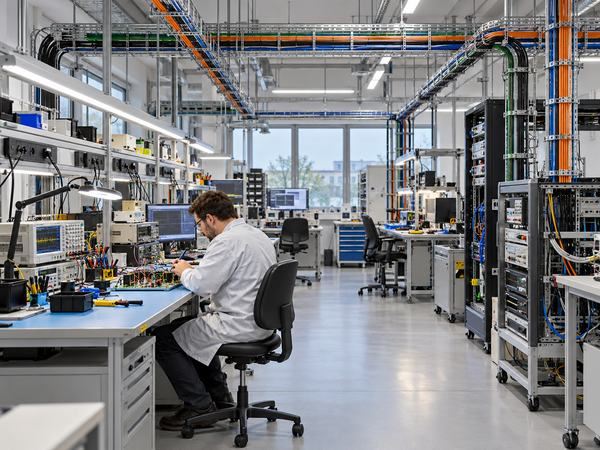

מעבדות בדיקה ומחקר
Test and Research Laboratories

Separation between power cables and sensitive measurement and communications cables.

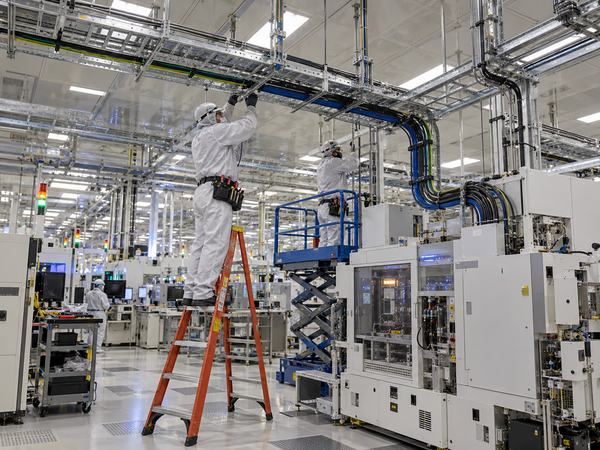

הרחבת מפעל פעיל
Expanding an Operating Plant

Adding pathways and cabling capacity while preserving the existing production infrastructure.
