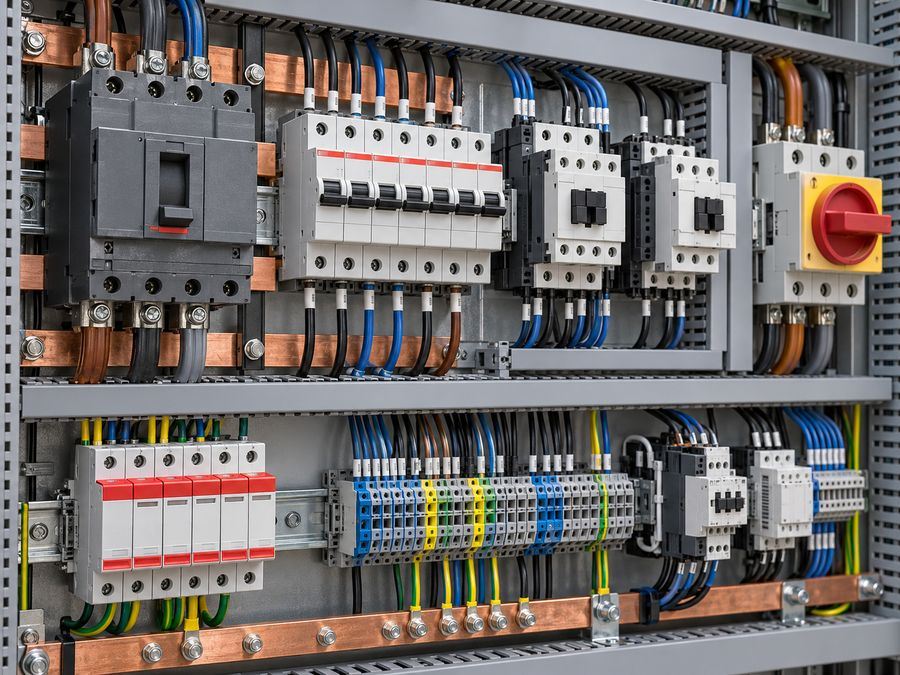

Switching and Protection Devices for Switchboards

Correct selection of switching and protection devices is critical to the safety of the facility and its operational continuity. Synergy Systems supplies a wide range of components, from MCBs and RCDs to thermal-magnetic circuit breakers, draw-out breakers, and surge protection, suited to the level of protection required in each application.

The protection scheme is designed as an integral part of the switchboard, in coordination with the Group's automation and panel divisions.

Matching Switching Devices to the Required Level of Protection

The switching and protection scheme is matched to the type of load, the safety requirements, and the sensitivity of the connected equipment, including surge protection for sensitive equipment.

הגנה מקצר ועומס יתר
Short-Circuit and Overload Protection

Circuit breakers and protective components matched to the current and short-circuit level.

הגנה מפני זליגה
Earth-Leakage Protection

RCDs to safeguard users and the facility.

הגנת נחשולי מתח
Surge Protection

SPD components to limit damage to sensitive electronic equipment.

התאמה לסלקטיביות וניתוק
Matched to Selectivity and Disconnection

Component selection based on fault scenarios and maintenance practice.

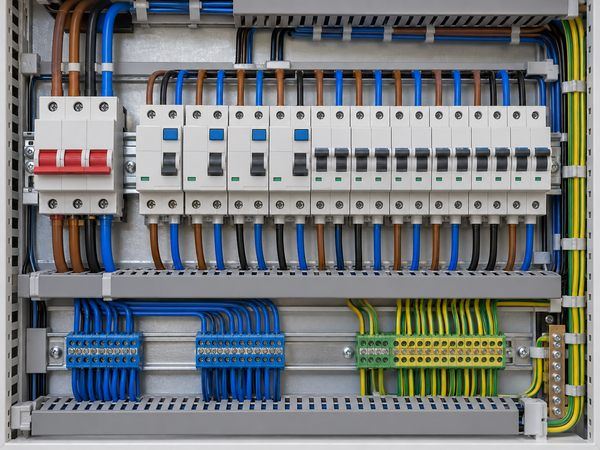

הגנת מעגלים סופיים
Final Circuit Protection

MCBs and RCDs for panels feeding lighting, outlets, and end equipment.

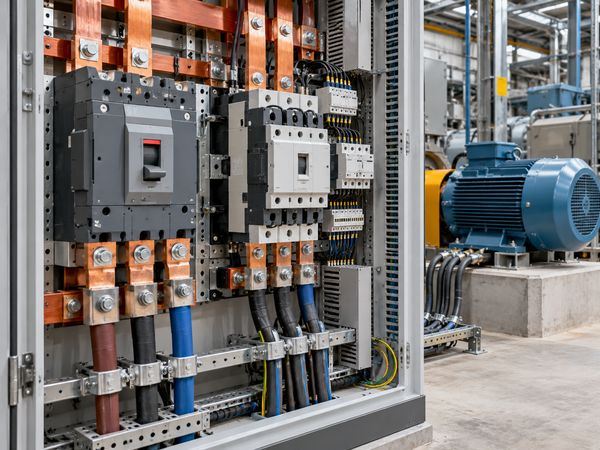

יציאות להספק גבוה
High-Power Outputs

Molded-case and air circuit breakers for protecting and disconnecting main feeders and large loads.

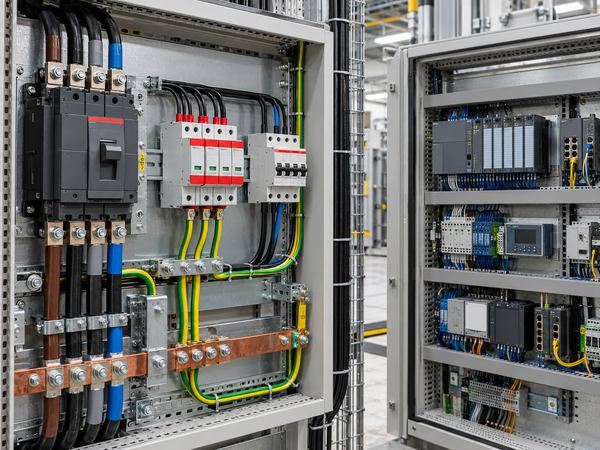

ציוד רגיש לנחשולי מתח
Surge-Sensitive Equipment

SPD components to reduce the risk of damage from lightning and grid disturbances.

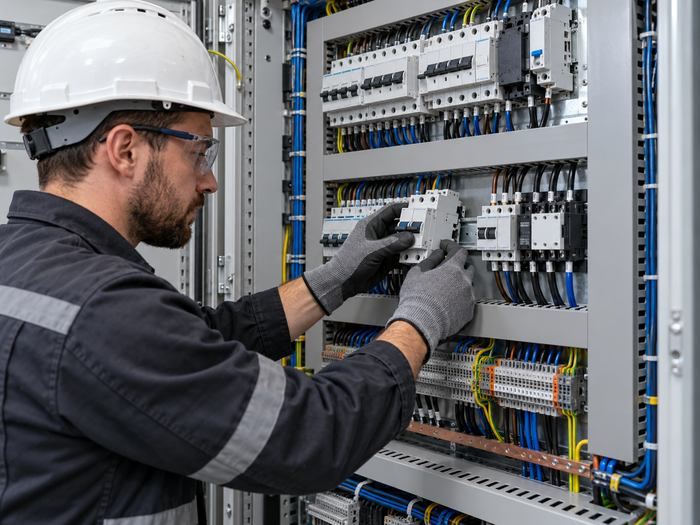

לוחות הדורשים תחזוקה מהירה
Panels Requiring Fast Maintenance

Draw-out breakers that allow a section to be replaced and isolated without dismantling the entire system.
