Harmonic Filters for Data Centers

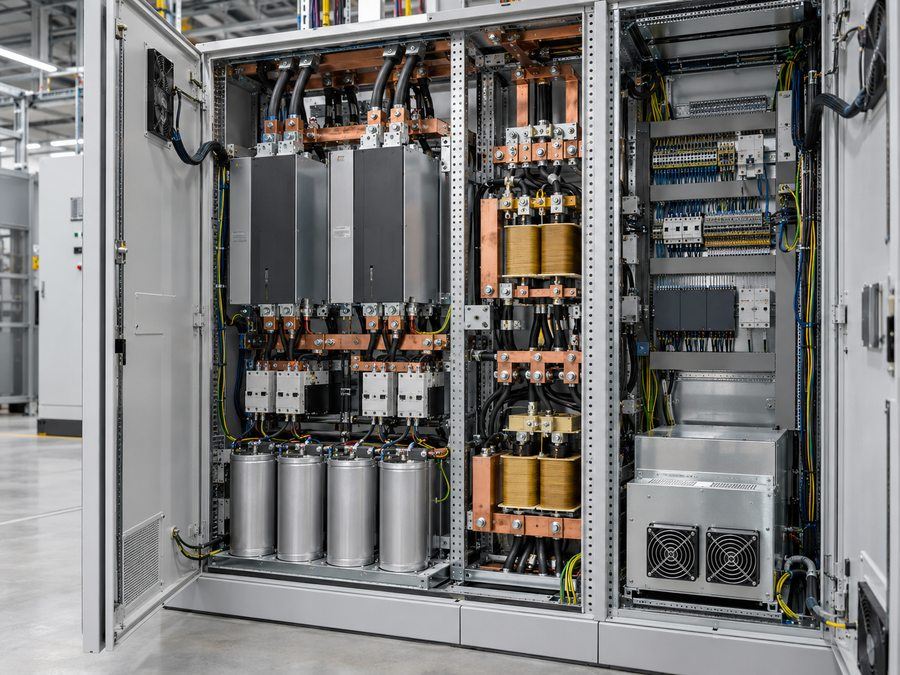

Harmonic Filters for Improving Power Quality in Data Centers

In a data center, even minor harmonic distortion in the power grid can cause overheating, electromagnetic noise, and reduced reliability of computing equipment. The harmonic filter that Synergy Systems supplies is selected and tailored to the actual load profile at the site, so that filtering is effective and targeted without degrading system performance.

Power quality is evaluated as a complete system, from the grid connection point to the final switchboard, in coordination with the Group's low-voltage and energy backup divisions.

Adapting a Harmonic Filter to an Existing Electrical System

Our engineering team reviews the existing switchboard configuration and the site's load profile, then recommends the filter type and the exact installation location, so the solution integrates into the existing system without extensive structural changes.

Harmonic Distortion Reduction

Filtering of disturbances generated by UPS systems, variable frequency drives, and power supplies.

Reduced Heating

Helps reduce thermal stress on transformers, conductors, and electrical components.

Protection for Sensitive Equipment

Improves power quality in computing, measurement, and control environments.

Matched to the Load Profile

Filter type and location are selected based on measurements and the actual system configuration.

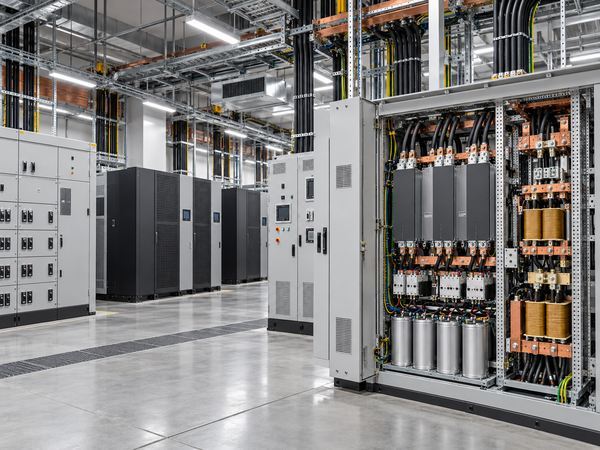

UPS-Intensive Data Centers

Reduction of distortion generated by large numbers of power supplies and UPS units, to protect transformers and panels.

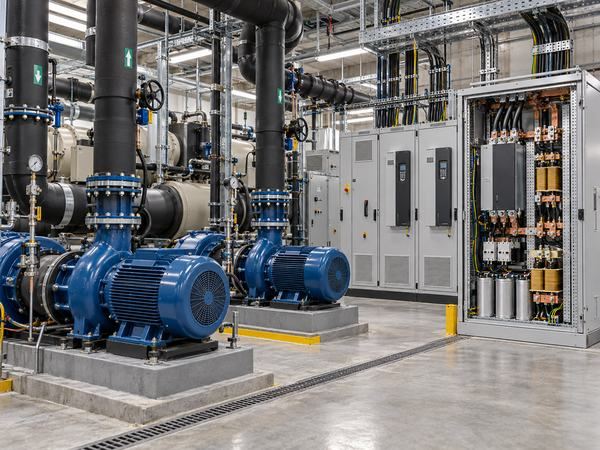

Cooling Systems and Motors with VFDs

Filtering of harmonics from variable frequency drives in chillers, pumps, and fans operating in parallel.

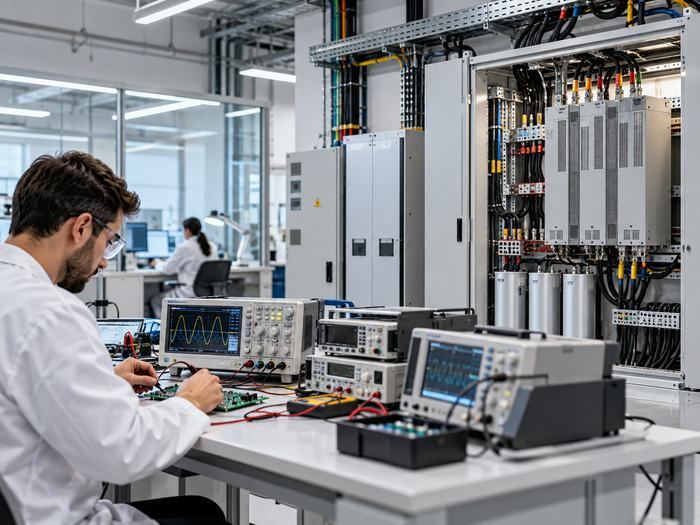

Laboratories and Sensitive Measurement Equipment

Improved power quality in environments where grid disturbances could compromise accuracy and reliability.

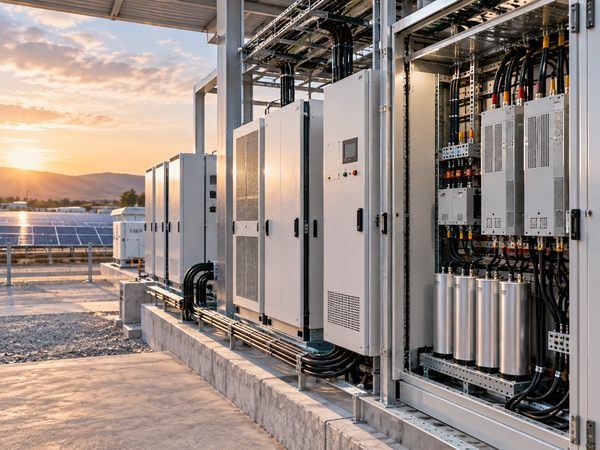

Generation and Energy Storage Facilities

Reduced distortion at the connection point and improved quality of the power fed into the electrical system.
